Bibliographies, citations and dotnet programming

Helping out a friend to get a Matura thesis completed, I stumbled onto the topics of citations and bibliographies. In the end, I wanted to get a handle on bibliographies using dotnet code.

Zotero

I installed Zotero, which was recommended by my daughter who had used it for her master thesis. It basically is a database (located either locally on your computer or on the web, with optional synchronization) of all the books, articles, etc you want in your bibliography.

Note: On OSX, another commonly used tool is BibDesk.

Better BibTeX

There is an extension to Zotero called Better-BibTeX, which I installed.

Better BibTeX (BBT) is a plugin for Zotero and Juris-M that makes it easier to manage bibliographic data, especially for people authoring documents using text-based toolchains (e.g. based on LaTeX / Markdown).

Features

Facilities for generating citation keys
Conversion between formats and encodings
Facilities for exporting data from Zotero

Visual Studio Code

Pick citation from Visual Studio Code: https://marketplace.visualstudio.com/items?itemName=mblode.zotero.

It pops up a little window which lets you choose the bibliography entry from Zotero and creates a unique identifier:

@durrenmattDurcheinandertalRoman1989

However, it is unclear how this can be used inside markdown.

Further information

I also found this link https://lucidmanager.org/productivity/hugo-bibliography/ which is worth reading. It defines particals for citations.

File Formats

The oldest and best known (but cryptic) file format for a bibliography is BibTeX. It comes in a .bib file. A typical format looks like this:

@book{durrenmatt_durcheinandertal_1989,
	address = {Zürich},
	title = {Durcheinandertal: {Roman}},
	isbn = {978-3-257-01820-2},
	shorttitle = {Durcheinandertal},
	publisher = {Diogenes},
	author = {Dürrenmatt, Friedrich},
	year = {1989},
}

@article{noauthor_wer_2022,
	title = {Wer entblösst hier eigentlich wen?},
	issn = {2504-4648},
	journal = {Aargauer Zeitung},
	month = aug,
	year = {2022},
	pages = {6--7},
}

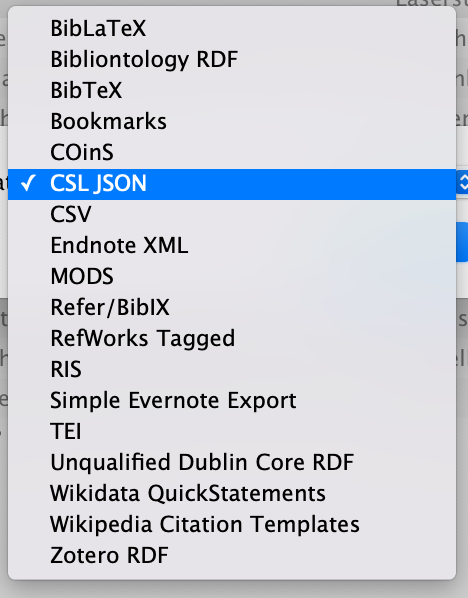

These files are difficult to parse with a software program. So I looked for other possible formats to store bibliographies. Zotero lists these export formats:

Zotero Export

These are described in more detail in Zotero-data-formats. I chose to take a look into the CSL Json format.

CSL Json

CSL stands for Citation Style Language. I found a good overview and the JSON schema on Github-CSL.

This is the official repository for schemas describing the Citation Style Language (CSL). Current schemas include:
CSL schema - describes CSL style and locale XML files
CSL-JSON schema - describes a commonly used JSON data model for storing CSL processor input (such as bibliographic metadata).
For more information about CSL, visit https://citationstyles.org. For general quesions and discussions have a look at the CSL-forum.

A sample CLS Json file may look like this:

[
  {
    "id": "http://zotero.org/users/10298668/items/SH797ZU6",
    "type": "article-newspaper",
    "container-title": "Aargauer Zeitung",
    "ISSN": "2504-4648",
    "page": "6-7",
    "title": "Wer entblösst hier eigentlich wen?",
    "issued": {
      "date-parts": [
        [
          "2022",
          8,
          27
        ]
      ]
    }
  },
  {
    "id": "http://zotero.org/users/10298668/items/TL3Z9724",
    "type": "book",
    "call-number": "MLCS 90/03506 (P)",
    "event-place": "Zürich",
    "ISBN": "978-3-257-01820-2",
    "number-of-pages": "175",
    "publisher": "Diogenes",
    "publisher-place": "Zürich",
    "source": "Library of Congress ISBN",
    "title": "Durcheinandertal: Roman",
    "title-short": "Durcheinandertal",
    "author": [
      {
        "family": "Dürrenmatt",
        "given": "Friedrich"
      }
    ],
    "issued": {
    "date-parts": [
      [
        "1989"
      ]
    ]
    }
  }
]

Obviously, this is easier to handle than the .bib format.

CSL Json Schema

The CSL Json Schema describes how json files have to look like to confirm to CSL. There are two CSL Json schema definitions:

CSL-Data-Json-Schema for a bibliographic entry
CSL-Citaton-Json-Schema for a citation entry

The CSL-Data-Json-Schema looks like this:

{
  "description": "JSON schema for CSL input data",
  "$schema": "http://json-schema.org/draft-07/schema#",
  "$id": "https://resource.citationstyles.org/schema/v1.0/input/json/csl-data.json",
  "type": "array",
  "items": {
    "type": "object",
    "properties": {
      "type": {
        "type": "string",
        "enum": [
          "article",
          "article-journal",
          "article-magazine",
          "article-newspaper",
          "bill",
          "book",
          "broadcast",
          "chapter",
          "classic",
          "collection",
          "dataset",
          "document",
          "entry",
          "entry-dictionary",
          "entry-encyclopedia",
          "event",
          "figure",
          "graphic",
          "hearing",
          "interview",
          "legal_case",
          "legislation",
          "manuscript",
          "map",
          "motion_picture",
          "musical_score",
          "pamphlet",
          "paper-conference",
          "patent",
          "performance",
          "periodical",
          "personal_communication",
          "post",
          "post-weblog",
          "regulation",
          "report",
          "review",
          "review-book",
          "software",
          "song",
          "speech",
          "standard",
          "thesis",
          "treaty",
          "webpage"
        ]
      },
      "id": {
        "type": [ "string", "number" ]
      },
      "citation-key": {
        "type": "string"
      },

Since in the end I wanted to use software to parse CSL-formatted bibliographies, I needed to turn these JSON files into dotnet classes.

A good another link to look at, particularly concering the handling of author names, is citeproj-js.

From Json Schema to dotnet classes

I started with the CSL-Data-Json-Schema. This now needed to be converted into dotnet classes. For this, I found the tool NJsonSchema by Rico Suter.

This promised to generate C# classes from the given schema. I used this code to do so:

let raw = "https://github.com/citation-style-language/schema/raw/master/schemas/input/csl-data.json"

let schema = NJsonSchema.JsonSchema.FromUrlAsync(raw).Result

let generator = new NJsonSchema.CodeGeneration.CSharp.CSharpGenerator(schema)
let file = generator.GenerateFile()

let outfn = Path.Combine(__SOURCE_DIRECTORY__, "gen-classes.cs")
printfn "writing to %s" outfn
File.WriteAllText(outfn, file)

Now the generated C# code looks like this:

//----------------------
// <auto-generated>
//     Generated using the NJsonSchema v10.8.0.0 (Newtonsoft.Json v9.0.0.0) (http://NJsonSchema.org)
// </auto-generated>
//----------------------
namespace MyNamespace
{
    #pragma warning disable // Disable all warnings

    [System.CodeDom.Compiler.GeneratedCode("NJsonSchema", "10.8.0.0 (Newtonsoft.Json v9.0.0.0)")]
    public partial class Anonymous
    {
        [Newtonsoft.Json.JsonProperty("type", Required = Newtonsoft.Json.Required.Always)]
        [System.ComponentModel.DataAnnotations.Required(AllowEmptyStrings = true)]
        [Newtonsoft.Json.JsonConverter(typeof(Newtonsoft.Json.Converters.StringEnumConverter))]
        public Type Type { get; set; }

        [Newtonsoft.Json.JsonProperty("id", Required = Newtonsoft.Json.Required.Always)]
        [System.ComponentModel.DataAnnotations.Required(AllowEmptyStrings = true)]
        public double Id { get; set; }

        [Newtonsoft.Json.JsonProperty("citation-key", Required = Newtonsoft.Json.Required.DisallowNull, NullValueHandling = Newtonsoft.Json.NullValueHandling.Ignore)]
        public string CitationKey { get; set; }
        // ...

I changed two things:

rename namespace and class name to `CSLData``
change the type of Id to string. In the CSL-schema-raw, the type of Id had two possibilities: string or double. The converter picked double which caused run time exceptions.

This code was put into a dotnet library CSLData.

Parsing a CSL File

Now to some code to parse the CSL files. I tried the following:

// #r "nuget: Newtonsoft.Json"
open System
open System.Text.Json
open CSLData
open Newtonsoft.Json

let fn = "./Exported-Items.json"
let json = IO.File.ReadAllText(fn)

// standard does NOT work, all data is zero
let csl = System.Text.Json.JsonSerializer.Deserialize<CSLData.CSLData list>(json)
printfn "csl = %A %A" csl csl.Head.Id

// Newtonsoft works
let csl' = Newtonsoft.Json.JsonConvert.DeserializeObject<CSLData.CSLData list>(json)
printfn "cls' = %A %A" csl' csl'.Head.Id

Turns out that System.Text.Json deserializes without exception, but all the values are zero or null. The Newtonsoft deserializer works.

One issue still open is to make this more F# friendly with options instead of nulls.

More on Zotero

I installed Zotero. It is programmed in JavaScript and uses a SQLite database as local storage Zotero-dev.

You need to register as user, and then you can get an API UserId https://www.zotero.org/settings/keys. In my case, that is 12345678.

Using this user id, you can access your bibliography library using:

$ curl https://api.zotero.org/users/12345678/collections
[
  {
    "key": "KEYKEY",
    "version": 3,
    "library": {
    "type": "user",
    "id": 12345678,
    "name": "mmgreiner",
    "links": {
      "alternate": {
        "href": "https://www.zotero.org/mmgreiner",
        "type": "text/html"
      }
    }
  },
  "links": {
    "self": {
      "href": "https://api.zotero.org/users/10298668/collections/KEYKEY",
      "type": "application/json"
    },
    "alternate": {
      "href": "https://www.zotero.org/mmgreiner/collections/KEYKEY",
      "type": "text/html"
    }
  },
  "meta": {
    "numCollections": 0,
    "numItems": 17
  },
  "data": {
    "key": "XXXXX",
    "version": 3,
    "name": "Lea",
    "parentCollection": false,
    "relations": {}
    }
  },
  {
  "key": "XXXXX",
  "version": 3,
  "library": {
  "type": "user",
  "id": 12345678,
  "name": "mmgreiner",
  "links": {
    "alternate": {
      "href": "https://www.zotero.org/mmgreiner",
      "type": "text/html"
      }
    }
  },
  "links": {
  "self": {
  "href": "https://api.zotero.org/users/10298668/collections/KEYKEY",
  "type": "application/json"
  },
  "alternate": {
  "href": "https://www.zotero.org/mmgreiner/collections/KEYKEY",
  "type": "text/html"
  }
  },
  "meta": {
  "numCollections": 0,
  "numItems": 2
  },
  "data": {
  "key": "XXXXX",
  "version": 3,
  "name": "Greiner",
  "parentCollection": false,
  "relations": {}
  }
}

## Citations

There are many standards how the citation and the bibliography could look. there is even a language to define how citations could look: CSL:

For instance:

Misc.

ISBN Numbers

Automatically generate citation from ISBN number

IMDb for films

Get Citations of films: No standard, but can use film database IMDb, which has a sequence number, Ex Manhattan has number Woody Allen: Manhattan tt0079522

Code to generate from PDF: bibtex-generator

Support in Github

See this stackoverflow article, or directly on Github.
